Irrigreen Short Range Insert — 4 Pack

Precision watering for every tight spot in your yard.

Most yards have more than one area that’s too small or too close for a full-range spray: a parkway strip out front, a narrow side yard, a patch between the driveway and the house. This 4 pack converts up to four Irrigreen heads from a 5–30 ft throw to 1–15 ft. Every compact area gets edge-to-edge precision, without overspray onto sidewalks, siding, or patios.

Why you’ll love it

• Cover every small zone at once. Convert up to four heads in one order. It’s ideal for yards with several strips, side yards, or compact lawn areas.
• Built for close-in watering. Water areas as close as 1 ft from the head, where a full-range head can’t cover cleanly.
• Keeps water on the grass. Precise short-throw coverage means less runoff and wasted water, and dry hardscapes.
• Installs in minutes, no digging. For each head, unscrew the nozzle cap, drop in the insert, replace the filter, and screw the nozzle back on.
• Fully smart. Turn on Short Range for each head in the Irrigreen App, calibrate, and map each zone with the Edit Shape tool. Short Range heads show a unique badge in the app so you always know which is which.

What’s included

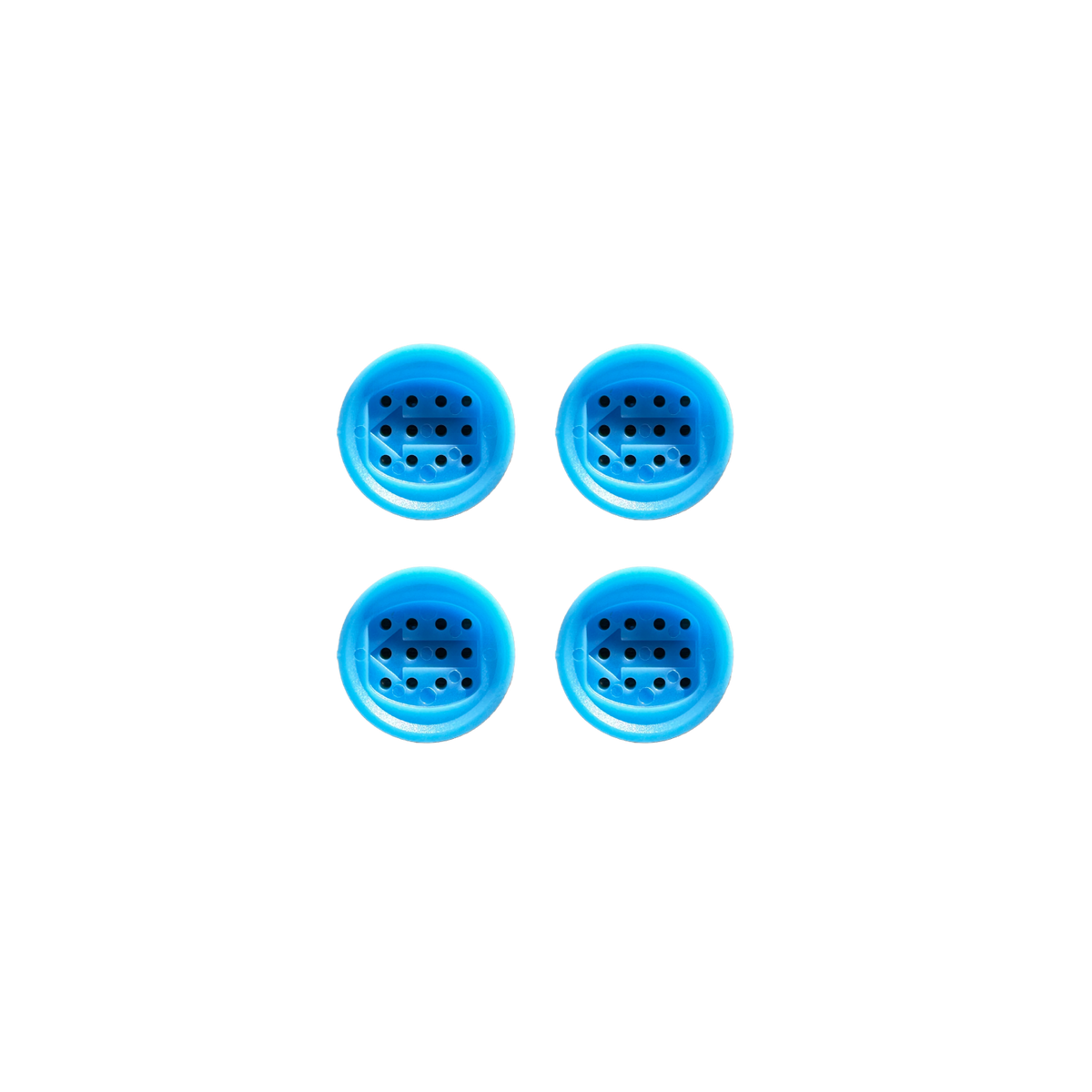

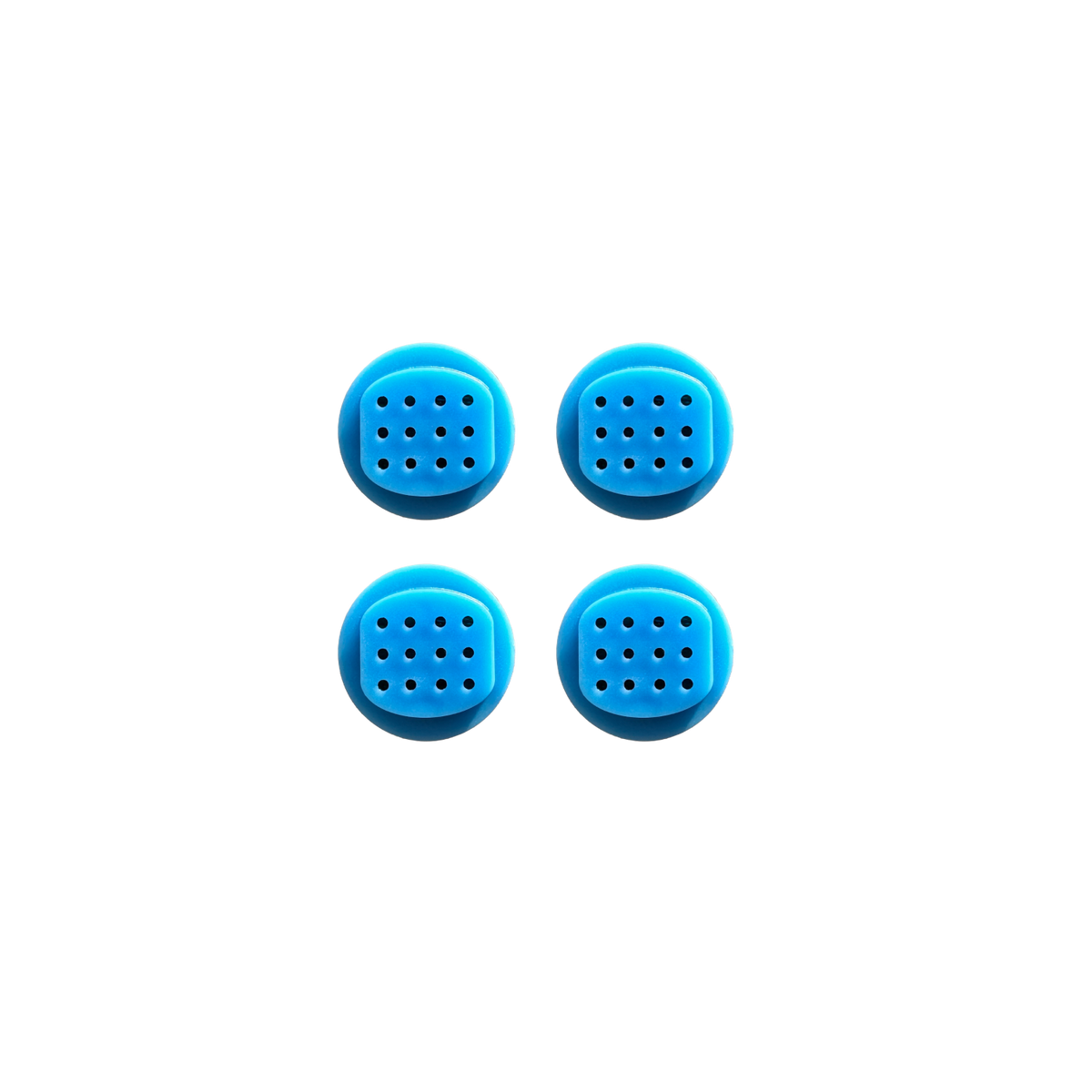

4× Short Range Inserts (converts up to four sprinkler heads)

Compatibility
Works with Irrigreen Sprinkler 3 heads with 16-port nozzles. Also works with Sprinkler 2 heads that have a 16-port nozzle.

Good to know
With an insert installed, that head’s maximum range is 15 ft. Use them on heads that only need to cover small or close-in areas, and keep standard heads for larger stretches of lawn.

How to install (for each head)

1. Unscrew the green cap counterclockwise to remove the nozzle.

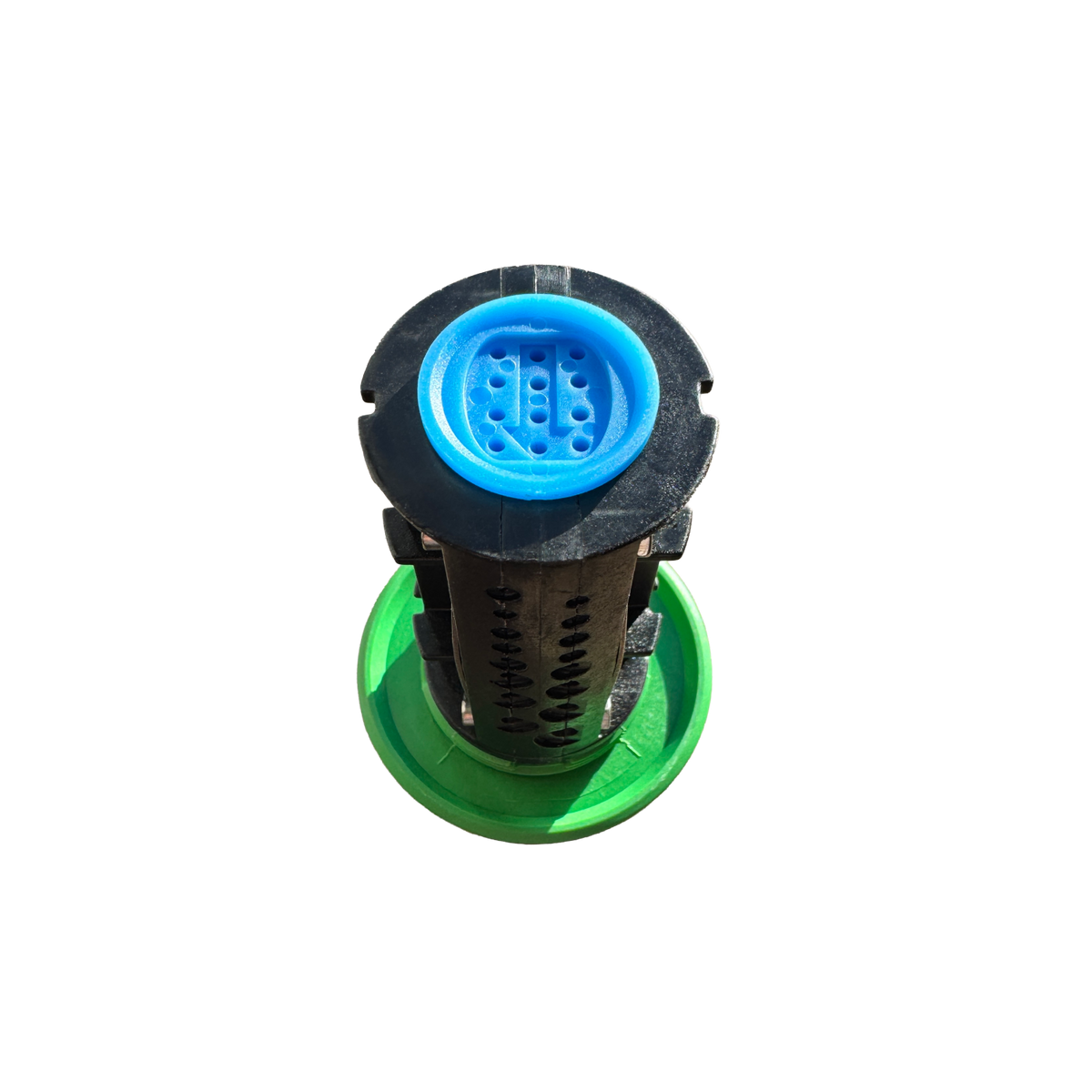

2. Insert the Short Range Insert into the bottom of the nozzle, with the stamped arrow pointing toward the spray ports.
3. Place the mesh filter back on top.
4. Twist the nozzle assembly firmly back onto the riser.
5. Toggle “Short Range” on in the Irrigreen App, calibrate the head, and map your new zone.

*Nozzle sold separately
